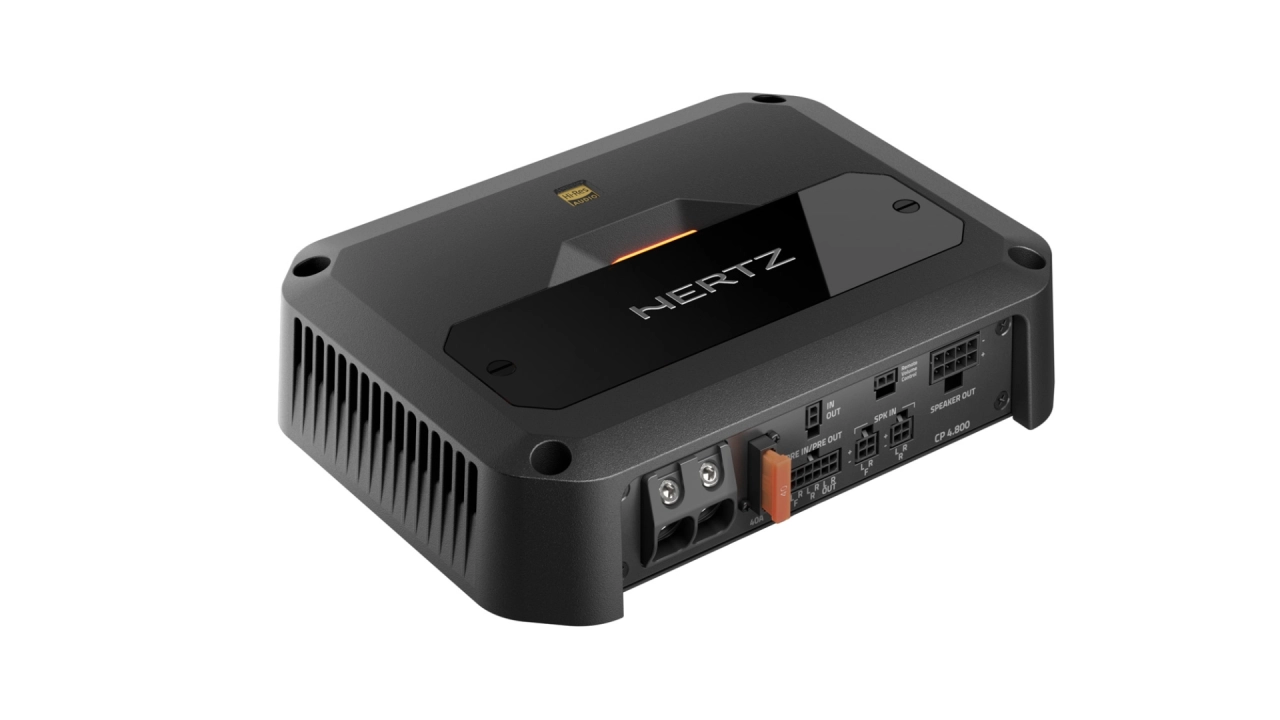

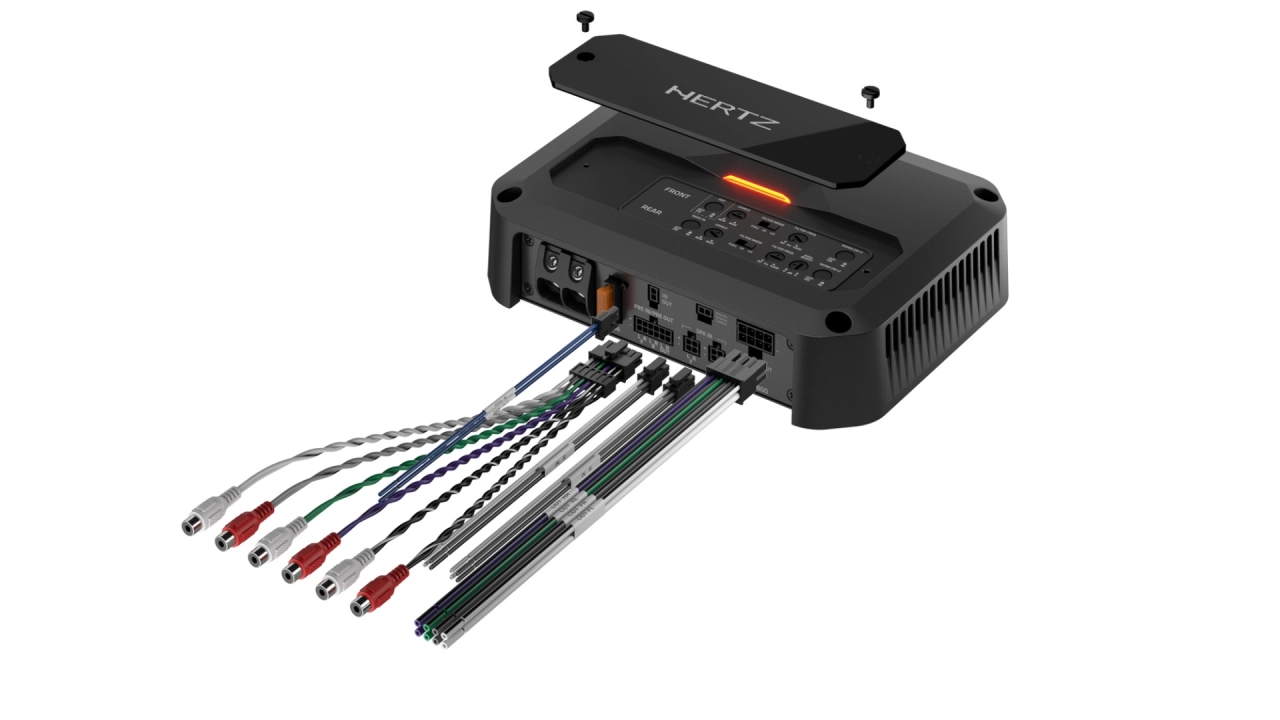

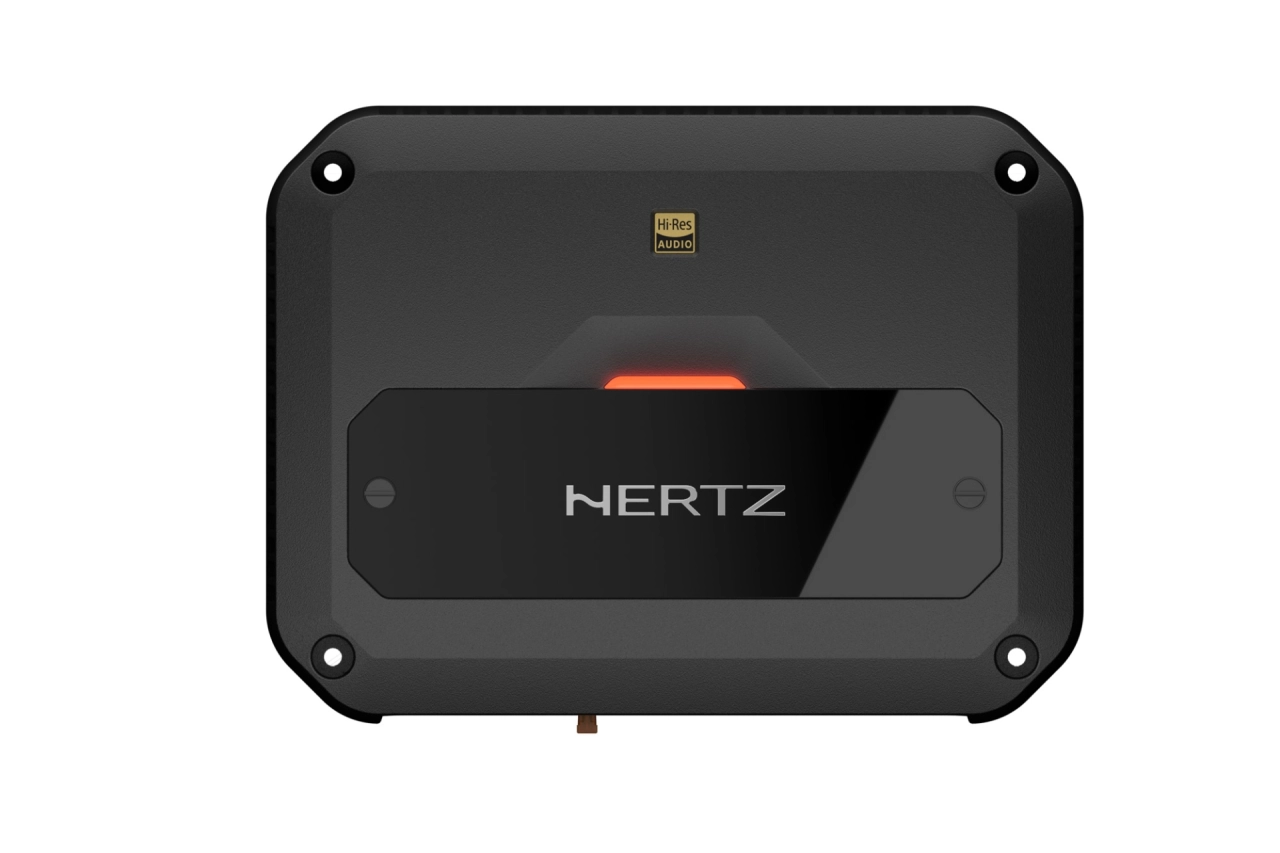

Amplificator auto HERTZ CP 4.800, 4 CANALE, 4x190W

Specificatii Tehnice::

MANUAL

Specificatii generale

• Canale: 4 - 3 - 2
• Clasa de amplificare: D

Sursa de alimentare

• Voltaj nominal sursa alimentare (siguranta): 11 ÷ 15 VDC (1 x 40 A)
• Voltaj de operare: 9 ÷ 18 VDC
• Consum curent fara sarcina: 1.15 A
• Consum de curent în standby: 4.2 µA
• Consum maxim de curent: 32 A

Remote IN

• 4 ÷ 17 VDC (1 mA)

ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC

Eficienta: 85%

Amplifier Stage

• Distorsiune - THD @ 100 Hz, 70% Rated Power: 0,02 %
• Damping factor @ 1 kHz, 1W: 100
• Latime de banda @ -3 dB: 10 Hz ÷ 47 kHz
• S/N ratio (A-weighted @ 1 V Input): 101 dBA

Impedanta minima de încarcare

• @ 4 Ch: 2 Ω
• @ 3 Ch: 2 Ω + 2 Ω + 4 Ω
• @ 2 Ch: 4 Ω

Crossover ajustabil: Da

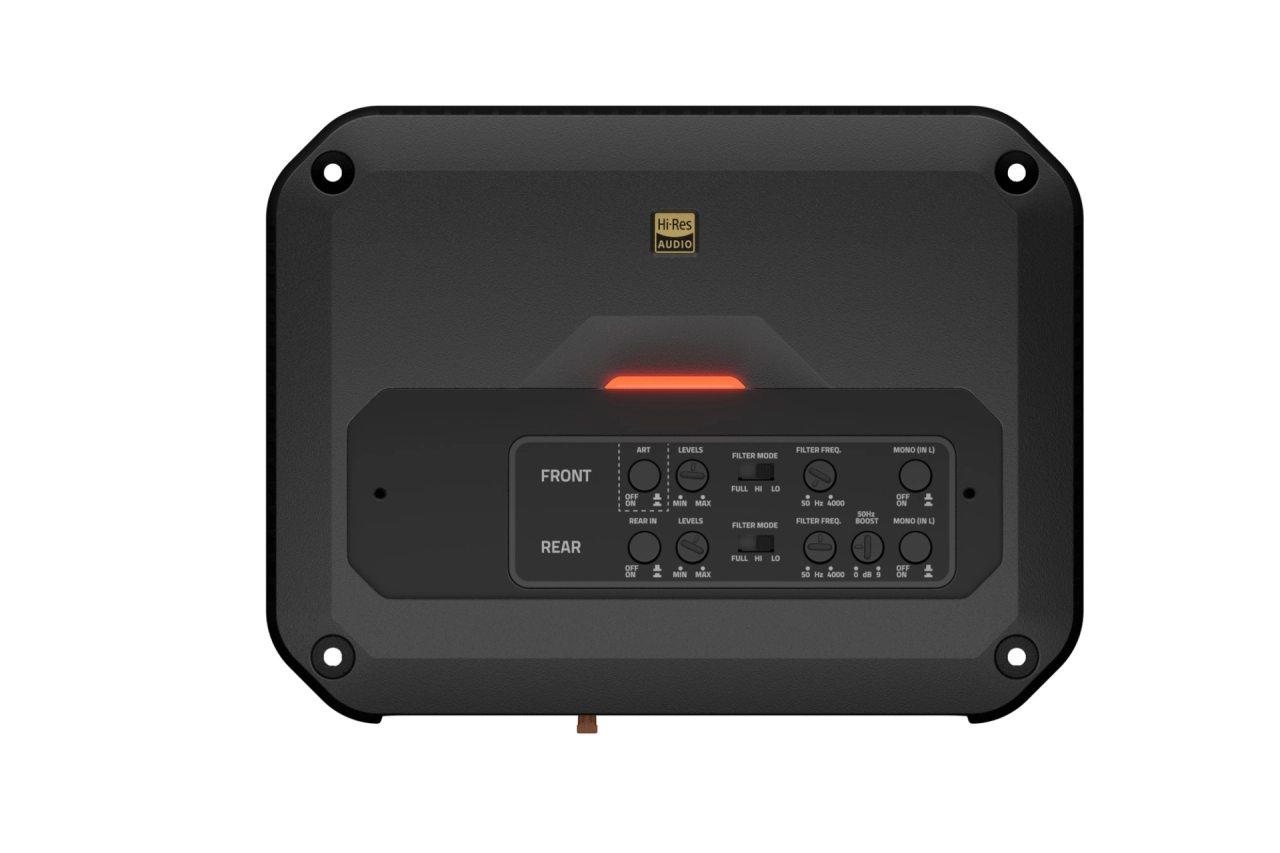

Intrari / Filtre

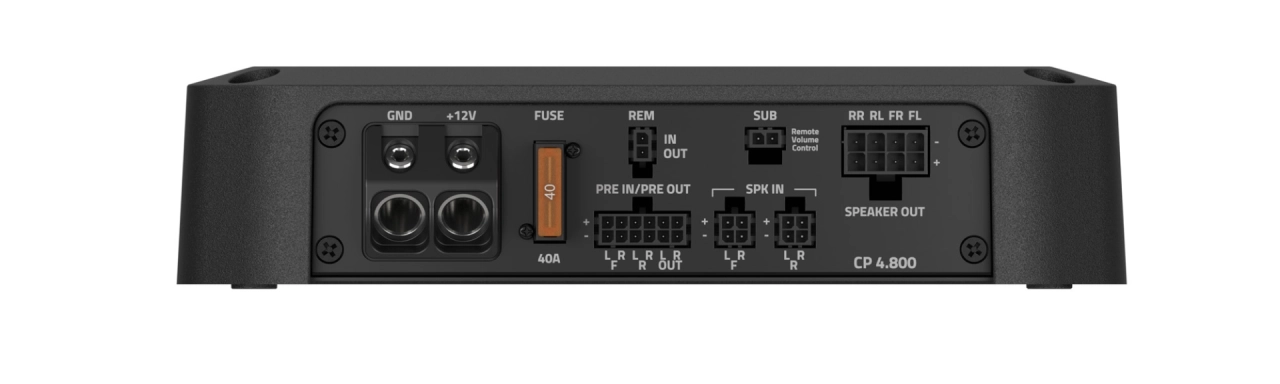

• Intrari: Pre-In / Speaker-In
• Pre Out: Full Range (Front)
• Sensibilitate de intrare mica: 0.32 ÷ 8 VRMS
• Sensibilitate de intrare mare: 1.6 ÷ 40 VRMS
• Front Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
• Front Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
• Rear Ch Hi-Pass: Full / 50-4000Hz 12dB/Oct.
• Rear Ch Lo-Pass: Full / 50-4000Hz 12dB/Oct.
• Bass Boost 50 Hz: 0 ÷ 9 dB
• Control volum subwoofer: -20 ÷ 6 dB (Activ pe Rear Ch cu LPF ON)

Putere de iesire (RMS) @ 1% THD

• 4Ch @ 4Ω: 110 W x 4
• 4Ch @ 2Ω: 190 W x 4
• 3Ch @ 4Ω / 4Ω: 100 W x 2 + 400 W x 1
• 3Ch @ 2Ω / 4Ω: 190 W x 2 + 380 W x 1
• 2Ch @ 4Ω: 380 W x 2

Putere totala: 760 W
